IE3

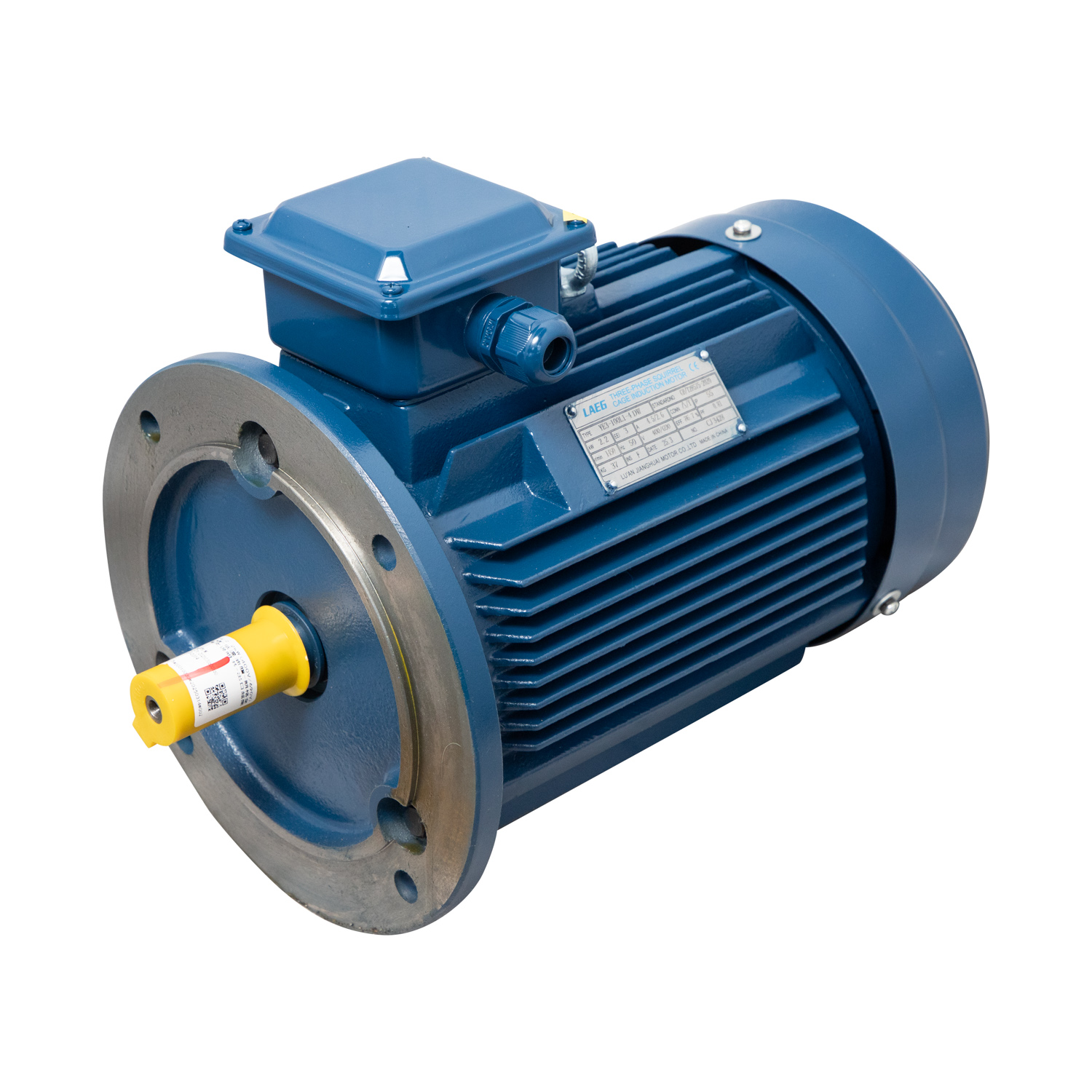

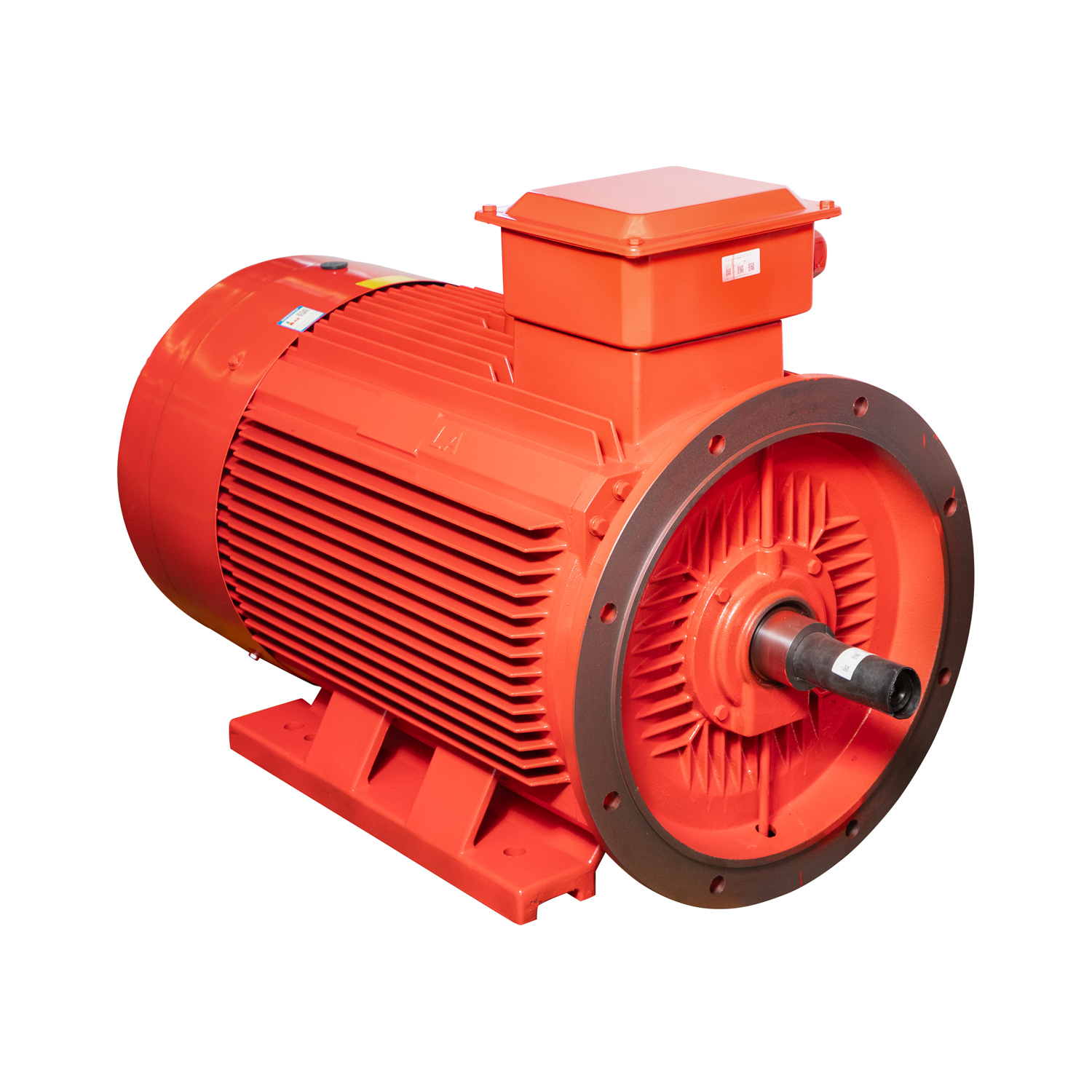

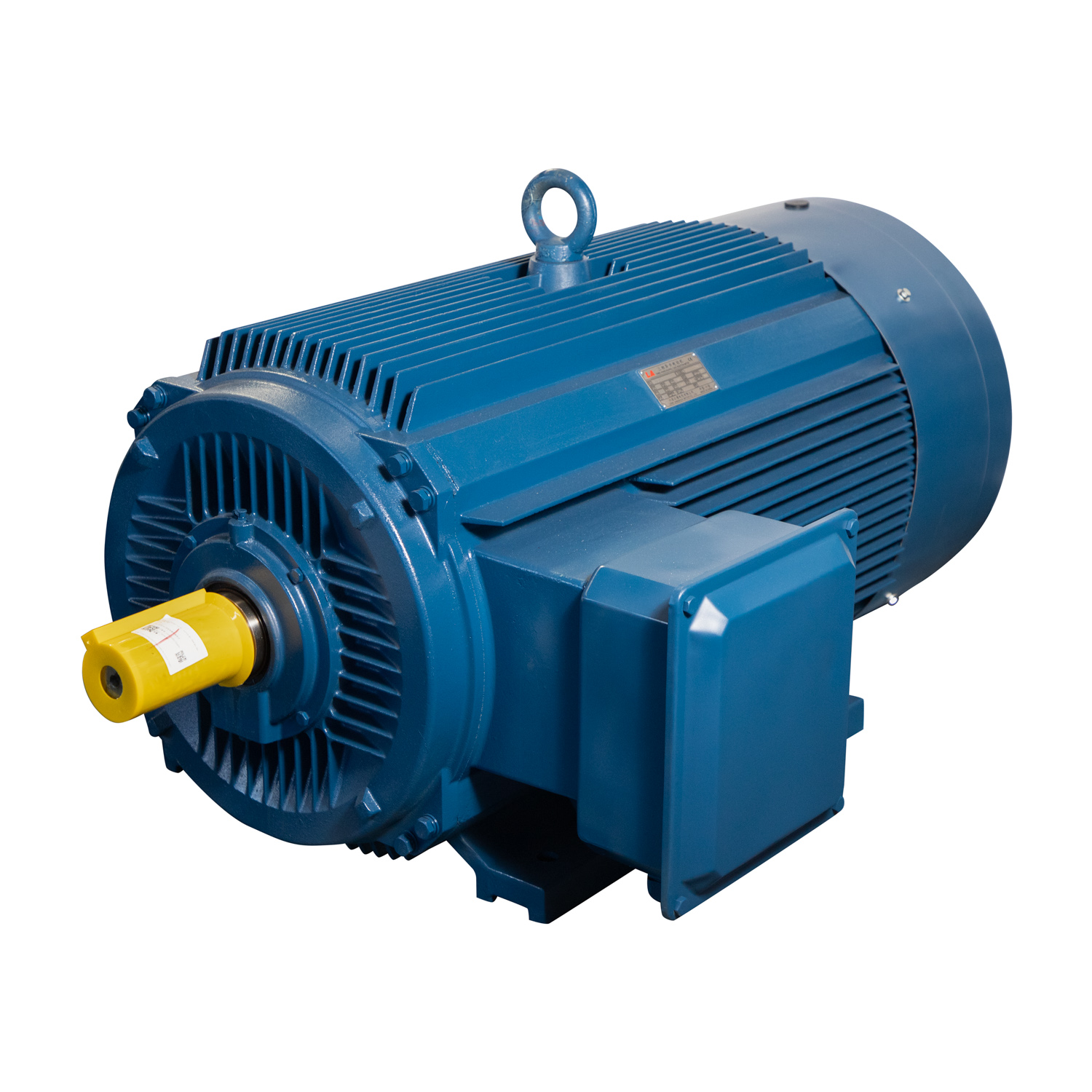

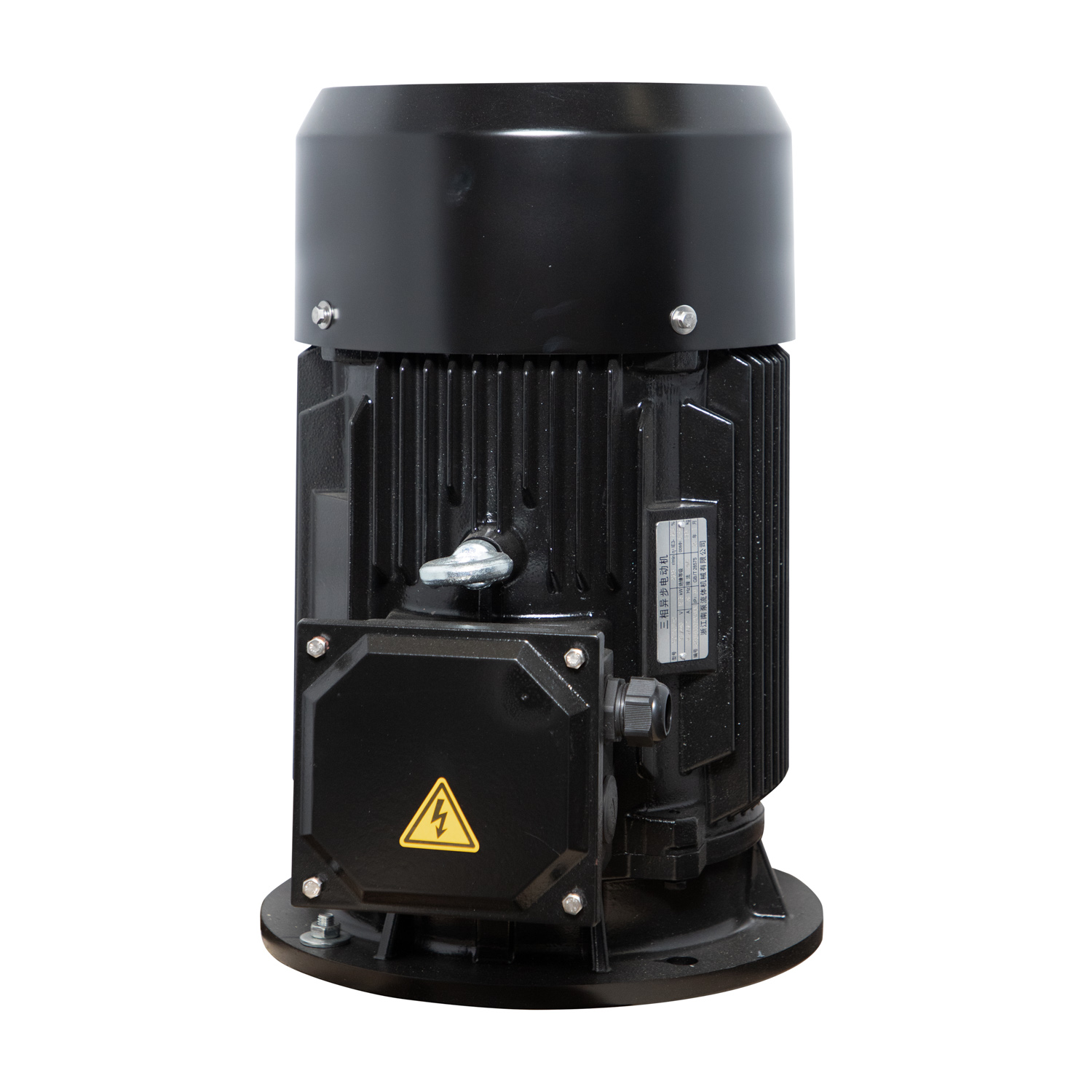

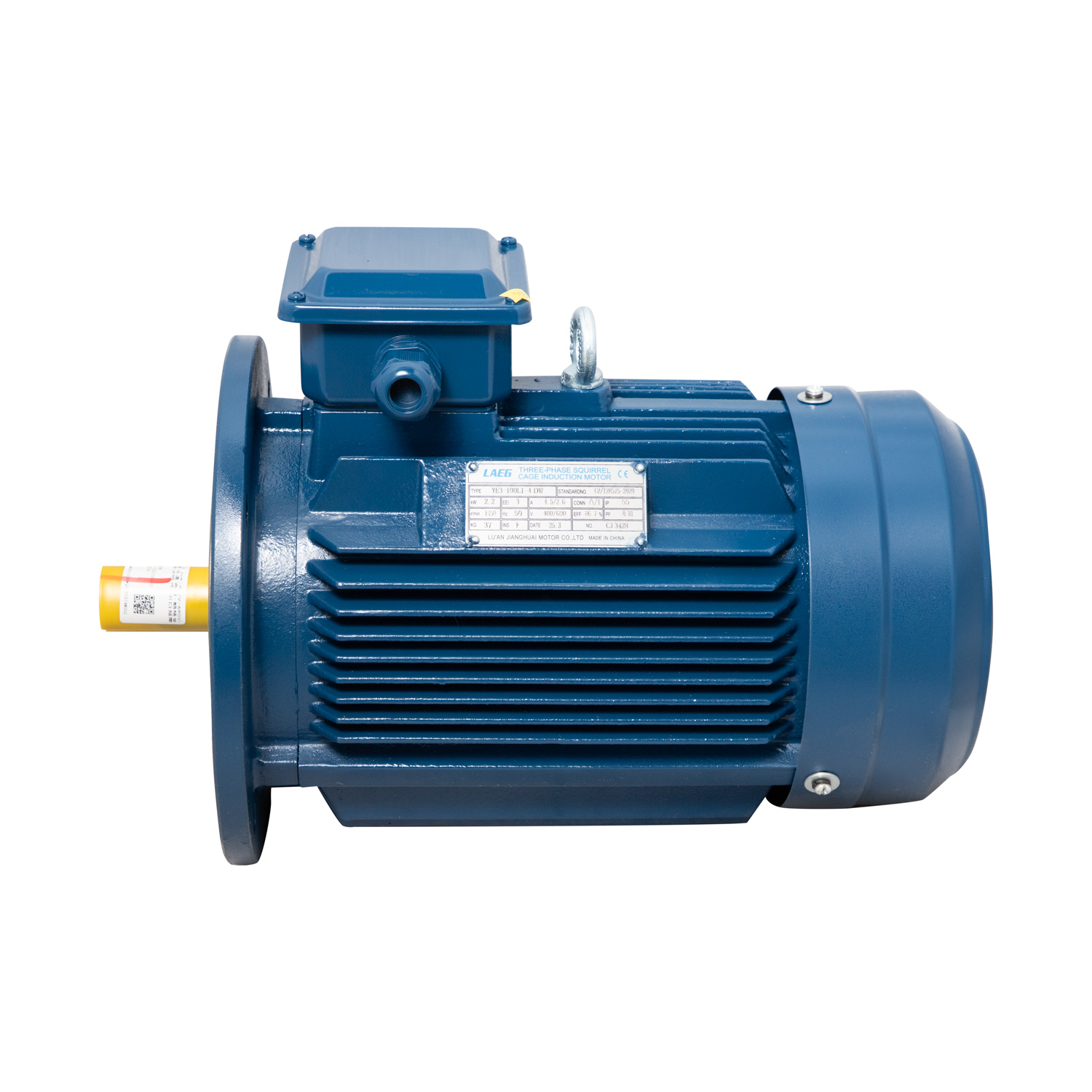

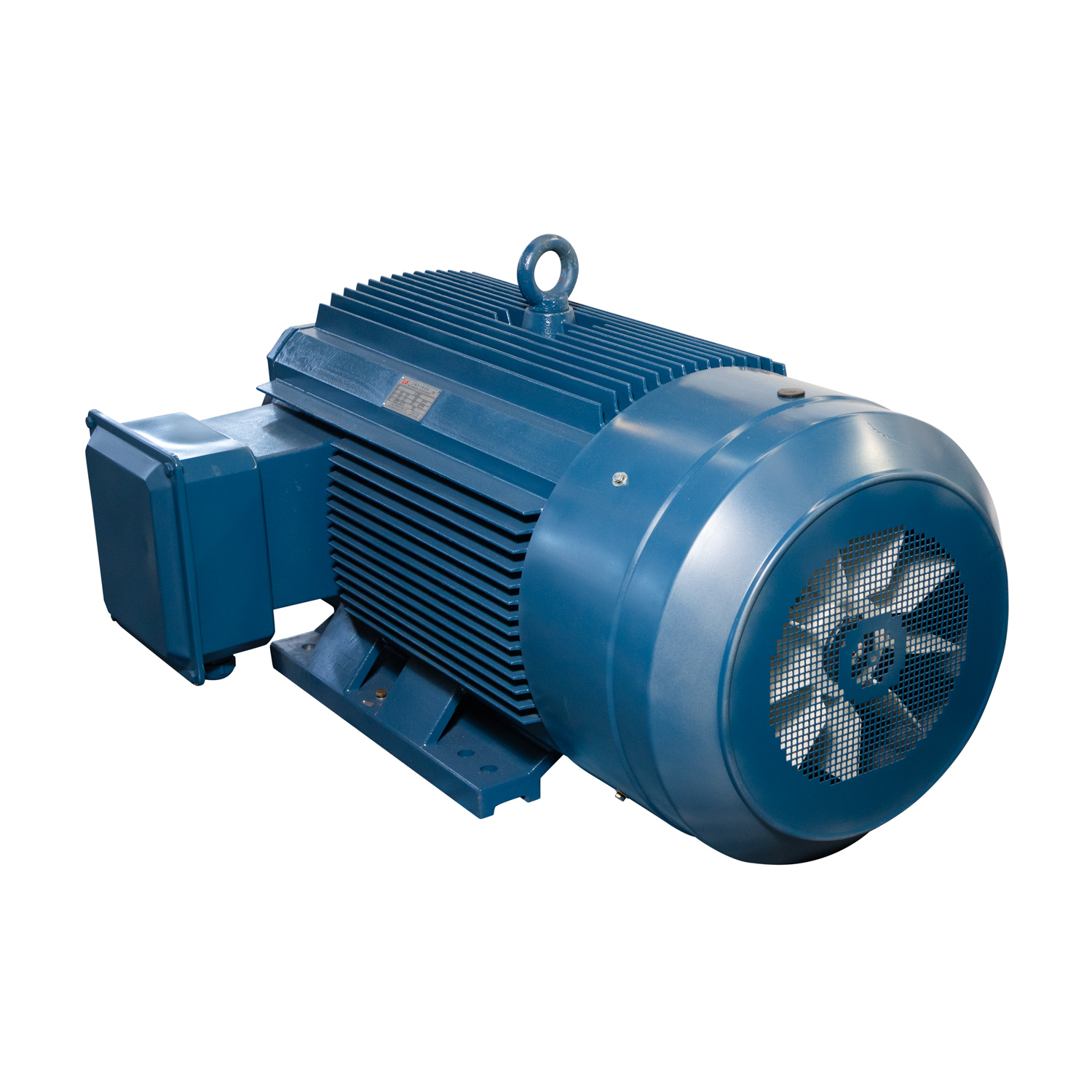

El motor asíncrono trifásico de la serie YE3 es un motor asíncrono de jaula de ardilla de ardilla autocolutada totalmente encerrada, fabricada con nuevos materiales, nuevos procesos y diseño optimizado.
IEC
Es un motor de alta eficiencia lanzado a nivel mundial, y sus dimensiones de instalación cumplen con los estándares IEC, que es conveniente para que los clientes logren un cambio rápido.
Esta serie de motores tiene las características de una apariencia hermosa, baja pérdida, bajo ruido, baja vibración, seguridad y confiabilidad, y fácil mantenimiento.
| Valor de diseño de datos técnicos (380V/50Hz) | |||||||||
| Tipo | Fuerza | Actual | Velocidad | Ef. | PF | RT | Par de paradas | Max. esfuerzo de torsión | corriente de rotor bloqueado |
| KW | A | r/min | % | Nuevo Méjico | TST/TN | TMAX/TN | LST/In | ||
| Velocidad de 2 polos-sincronas 3000 rpm-50Hz | |||||||||
| Ye3-80m1-2 | 0.75 | 1.7 | 2885 | 80.7 | 0.82 | 2.4 | 2.3 | 2.3 | 7.0 |
| Ye3-80M2-2 | 1.1 | 2.4 | 2885 | 82.7 | 0.83 | 3.5 | 2.2 | 2.3 | 7.6 |
| Ye3-90S-2 | 1.5 | 3.2 | 2905 | 84.2 | 0.84 | 4.8 | 2.2 | 2.3 | 7.9 |
| Ye3-90L-2 | 2.2 | 4.6 | 2905 | 85.9 | 0.85 | 7.0 | 2.2 | 2.3 | 7.9 |
| Ye3-100l-2 | 3 | 6.0 | 2895 | 87.1 | 0.87 | 9.6 | 2.2 | 2.3 | 8.5 |
| YE3-112M-2 | 4 | 7.8 | 2915 | 88.1 | 0.88 | 12.7 | 2.2 | 2.3 | 8.5 |
| YE3-132S1-2 | 5.5 | 10.6 | 2925 | 89.2 | 0.88 | 17.5 | 2.0 | 2.3 | 8.5 |
| Ye3-132s2- | 7.5 | 14.4 | 2925 | 90.1 | 0.88 | 23.9 | 2.0 | 2.3 | 8.5 |
| YE3-160M1-2 | 11 | 20.6 | 2950 | 91.2 | 0.89 | 35.0 | 2.0 | 2.3 | 8.5 |
| YE3-160M2-2 | 15 | 27.9 | 2950 | 91.9 | 0.89 | 47.8 | 2.0 | 2.3 | 8.5 |
| YE3-160L-2 | 18.5 | 34.2 | 2950 | 92.4 | 0.89 | 58.9 | 2.0 | 2.3 | 8.5 |
| Ye3-180m-2 | 22 | 40.5 | 2960 | 92.7 | 0.89 | 70.0 | 2.0 | 2.3 | 8.5 |
| Ye3-200l1-2 | 30 | 54.9 | 2965 | 93.3 | 0.89 | 95.5 | 2.0 | 2.3 | 8.5 |
| YE3-200L2-2 | 37 | 67.4 | 2965 | 93.7 | 0.89 | 118 | 2.0 | 2.3 | 8.5 |
| Ye3-225m-2 | 45 | 80.8 | 2965 | 94.0 | 0.90 | 143 | 2.0 | 2.3 | 8.0 |
| Ye3-250m-2 | 55 | 98.5 | 2970 | 94.3 | 0.90 | 175 | 2.0 | 2.3 | 8.0 |
| YE3-280S-2 | 75 | 134 | 2975 | 94.7 | 0.90 | 239 | 1.8 | 2.3 | 7.5 |
| Ye3-280m-2 | 90 | 160 | 2975 | 95.0 | 0.90 | 287 | 1.8 | 2.3 | 7.5 |
| YE3-315S-2 | 110 | 195 | 2980 | 95.2 | 0.90 | 350 | 1.8 | 2.3 | 7.5 |
| Ye3-315m-2 | 132 | 234 | 2980 | 95.4 | 0.90 | 420 | 1.8 | 2.3 | 7.5 |
| YE3-315L1-2 | 160 | 279 | 2980 | 95.6 | 0.91 | 509 | 1.8 | 2.3 | 7.5 |
| YE3-315L-2 | 185 | 324 | 2980 | 95.6 | 0.91 | 589 | 1.8 | 2.3 | 7.5 |
| YE3-315L2-2 | 200 | 349 | 2980 | 95.8 | 0.91 | 637 | 1.8 | 2.2 | 7.5 |
| Ye3-355m1-2 | 220 | 384 | 2985 | 95.8 | 0.91 | 700 | 1.6 | 2.2 | 7.5 |
| YE3-355M2-2 | 250 | 436 | 2985 | 95.8 | 0.91 | 796 | 1.6 | 2.2 | 7.5 |
| YE3-355L1-2 | 280 | 488 | 2985 | 95.8 | 0.91 | 891 | 1.6 | 2.2 | 7.5 |
| YE3-355L2-2 | 315 | 549 | 2985 | 95.8 | 0.91 | 1003 | 1.6 | 2.2 | 7.5 |
| YE3-3551-2 | 355 | 619 | 2985 | 95.8 | 0.91 | 1130 | 1.6 | 2.2 | 7.5 |
| YE3-3552-2 | 375 | 654 | 2985 | 95.8 | 0.91 | 1194 | 1.6 | 2.2 | 7.5 |
| 4 polos sincronos Velocidad 1500 rpm-50Hz | |||||||||
| YE3-80M1-4 | 0.55 | 1.4 | 1435 | 80.8 | 0.75 | 3.5 | 2.4 | 2.3 | 6.6 |
| YE3-80M2-4 | 0.75 | 1.8 | 1435 | 82.5 | 0.75 | 4.8 | 2.3 | 2.3 | 6.6 |
| Ye3-90S-4 | 1.1 | 2.6 | 1435 | 84.1 | 0.76 | 7.0 | 2.3 | 2.3 | 6.8 |
| YE3-90L-4 | 1.5 | 3.5 | 1435 | 85.3 | 0.77 | 9.6 | 2.3 | 2.3 | 7.0 |
| YE3-100L1-4 | 2.2 | 4.8 | 1450 | 86.7 | 0.81 | 14.0 | 2.3 | 2.3 | 7.6 |
| YE3-100L2-4 | 3 | 6.3 | 1450 | 87.7 | 0.82 | 19.1 | 2.3 | 2.3 | 7.6 |
| YE3-112M-4 | 4 | 8.4 | 1455 | 88.6 | 0.82 | 25.5 | 2.2 | 2.3 | 7.8 |
| YE3-132S-4 | 5.5 | 11.2 | 1465 | 89.6 | 0.83 | 35.0 | 2.0 | 2.3 | 7.9 |
| YE3-132M-4 | 7.5 | 15.0 | 1465 | 90.4 | 0.84 | 47.8 | 2.0 | 2.3 | 7.5 |
| YE3-160M-4 | 11 | 21.5 | 1470 | 91.4 | 0.85 | 70.0 | 2.2 | 2.3 | 7.7 |
| YE3-160L-4 | 15 | 28.8 | 1470 | 92.1 | 0.86 | 95.5 | 2.2 | 2.3 | 7.8 |
| YE3-180M-4 | 18.5 | 35.3 | 1475 | 92.6 | 0.86 | 118 | 2.0 | 2.3 | 7.8 |
| YE3-180L-4 | 22 | 41.8 | 1475 | 93.0 | 0.86 | 140 | 2.0 | 2.3 | 7.8 |
| YE3-200L-4 | 30 | 56.6 | 1475 | 93.6 | 0.86 | 191 | 2.0 | 2.3 | 7.3 |
| YE3-225S-4 | 37 | 69.6 | 1480 | 93.9 | 0.86 | 236 | 2.0 | 2.3 | 7.4 |
| YE3-225M-4 | 45 | 84.4 | 1480 | 94.2 | 0.86 | 287 | 2.0 | 2.3 | 7.4 |
| YE3-250M-4 | 55 | 103 | 1485 | 94.6 | 0.86 | 350 | 2.2 | 2.3 | 7.4 |
| YE3-280S-4 | 75 | 136 | 1485 | 95.0 | 0.88 | 478 | 2.0 | 2.3 | 6.9 |
| YE3-280M-4 | 90 | 163 | 1485 | 95.2 | 0.88 | 573 | 2.0 | 2.3 | 6.9 |
| YE3-315S-4 | 110 | 197 | 1485 | 95.4 | 0.89 | 700 | 2.0 | 2.2 | 7.0 |
| YE3-315M-4 | 132 | 236 | 1485 | 95.6 | 0.89 | 840 | 2.0 | 2.2 | 7.0 |
| YE3-315L1-4 | 160 | 285 | 1485 | 95.8 | 0.89 | 1019 | 2.0 | 2.2 | 7.1 |
| YE3-315L-4 | 185 | 325 | 1485 | 95.8 | 0.89 | 1178 | 2.0 | 2.2 | 7.1 |
| YE3-315L2-4 | 200 | 352 | 1485 | 96.0 | 0.90 | 1273 | 2.0 | 2.2 | 7.1 |
| YE3-355M1-4 | 220 | 387 | 1490 | 96.0 | 0.90 | 1401 | 2.0 | 2.2 | 7.1 |
| YE3-355M2-4 | 250 | 440 | 1490 | 96.0 | 0.90 | 1592 | 2.0 | 2.2 | 7.1 |
| YE3-355L1-4 | 280 | 493 | 1490 | 96.0 | 0.90 | 1783 | 2.0 | 2.2 | 7.1 |
| YE3-355L2-4 | 315 | 554 | 1490 | 96.0 | 0.90 | 2006 | 2.0 | 2.2 | 7.1 |
| Ye3-3551-4 | 355 | 638 | 1490 | 96.0 | 0.90 | 2260 | 2.0 | 2.2 | 7.1 |
| Ye3-3552-4 | 375 | 674 | 1490 | 96.0 | 0.90 | 2388 | 2.0 | 2.2 | 7.1 |
| Velocidad de 6 polos-sincronas 1000 rpm-50Hz | |||||||||
| Ye3-80m1-6 | 0.37 | 1.1 | 900 | 73.5 | 0.70 | 3.5 | 1.9 | 2.0 | 6.0 |
| YE3-80M2-6 | 0.55 | 1.5 | 900 | 77.2 | 0.72 | 5.3 | 1.9 | 2.1 | 6.0 |
| Ye3-90S-6 | 0.75 | 2.0 | 950 | 78.9 | 0.71 | 7.2 | 2.0 | 2.1 | 6.0 |
| YE3-90L-6 | 1.1 | 2.8 | 950 | 81.0 | 0.73 | 10.5 | 2.0 | 2.1 | 6.0 |
| YE3-100L-6 | 1.5 | 3.8 | 960 | 82.5 | 0.73 | 14.3 | 2.0 | 2.1 | 6.5 |
| YE3-112M-6 | 2.2 | 5.4 | 960 | 84.3 | 0.74 | 21.0 | 2.0 | 2.1 | 6.6 |
| YE3-132S-6 | 3 | 7.2 | 970 | 85.6 | 0.74 | 28.7 | 2.0 | 2.1 | 6.8 |
| YE3-132M1-6 | 4 | 9.5 | 970 | 86.8 | 0.74 | 38.2 | 2.0 | 2.1 | 6.8 |
| YE3-132M1-6 | 5.5 | 12.7 | 970 | 88.0 | 0.75 | 52.5 | 2.0 | 2.1 | 7.0 |
| YE3-160M-6 | 7.5 | 16.2 | 975 | 89.1 | 0.79 | 71.6 | 2.0 | 2.1 | 7.0 |
| YE3-160L-6 | 11 | 23.1 | 975 | 90.3 | 0.80 | 105 | 2.0 | 2.1 | 7.2 |
| YE3-180L-6 | 15 | 30.9 | 980 | 91.2 | 0.81 | 143 | 2.0 | 2.1 | 7.3 |
| YE3-200L1-6 | 18.5 | 37.8 | 980 | 91.7 | 0.81 | 177 | 2.0 | 2.1 | 7.3 |
| YE3-200L2-6 | 22 | 44.8 | 980 | 92.2 | 0.81 | 210 | 2.0 | 2.1 | 7.4 |
| YE3-225M-6 | 30 | 59.1 | 985 | 92.9 | 0.83 | 287 | 2.0 | 2.1 | 6.9 |
| YE3-250M-6 | 37 | 71.7 | 985 | 93.3 | 0.84 | 353 | 2.0 | 2.1 | 7.1 |
| YE3-280S-6 | 45 | 85.8 | 990 | 93.7 | 0.85 | 430 | 2.0 | 2.0 | 7.3 |
| YE3-280M-6 | 55 | 103 | 990 | 94.1 | 0.86 | 525 | 2.0 | 2.0 | 7.3 |
| YE3-315S-6 | 75 | 143 | 990 | 94.6 | 0.84 | 716 | 2.0 | 2.0 | 6.6 |
| YE3-315M-6 | 90 | 170 | 990 | 94.9 | 0.85 | 860 | 2.0 | 2.0 | 6.7 |
| YE3-315L1-6 | 110 | 207 | 990 | 95.1 | 0.85 | 1051 | 2.0 | 2.0 | 6.7 |
| YE3-315L2-6 | 132 | 245 | 990 | 95.4 | 0.86 | 1261 | 2.0 | 2.0 | 6.8 |
| YE3-355M1-6 | 160 | 296 | 990 | 95.6 | 0.86 | 1528 | 1.8 | 2.0 | 6.8 |
| YE3-355M-6 | 185 | 337 | 990 | 95.6 | 0.86 | 1767 | 1.8 | 2.0 | 6.8 |
| YE3-355M2-6 | 200 | 365 | 990 | 95.8 | 0.87 | 1910 | 1.8 | 2.0 | 6.8 |
| YE3-355L1-6 | 220 | 402 | 990 | 95.8 | 0.87 | 2101 | 1.8 | 2.0 | 6.8 |
| YE3-355L2-6 | 250 | 456 | 990 | 95.8 | 0.87 | 2388 | 1.8 | 2.0 | 6.8 |
| YE3-355L4-6 | 280 | 483 | 990 | 95.8 | 0.87 | 2674 | 1.8 | 2.0 | 6.8 |
| Ye3-3551-6 | 315 | 576 | 990 | 95.8 | 0.87 | 3008 | 1.8 | 2.0 | 6.8 |
| YE3-3552-6 | 355 | 650 | 990 | 95.8 | 0.87 | 3390 | 1.8 | 2.0 | 6.8 |
| Velocidad de 8 polos-sincronales 750 rpm-50Hz | |||||||||
| Ye3-80m1-8 | 0.18 | 0.8 | 660 | 58.7 | 0.61 | 2.3 | 1.8 | 1.9 | 5.2 |
| YE3-80M2-8 | 0.25 | 1 | 660 | 64.1 | 0.61 | 3.2 | 1.8 | 1.9 | 5.7 |
| Ye3-90S-8 | 0.37 | 1.3 | 680 | 69.3 | 0.61 | 4.7 | 1.8 | 1.9 | 6.2 |
| YE3-90L-8 | 0.55 | 1.9 | 680 | 73 | 0.61 | 7.0 | 1.8 | 2.0 | 5.9 |
| YE3-100L1-8 | 0.75 | 2.3 | 695 | 75 | 0.67 | 9.6 | 1.8 | 2.0 | 6.2 |
| YE3-100L2-8 | 1.1 | 3.1 | 695 | 77.7 | 0.69 | 14.0 | 1.8 | 2.0 | 6.2 |
| YE3-112M-8 | 1.5 | 4.1 | 700 | 79.7 | 0.7 | 19.1 | 1.8 | 2.0 | 6.7 |
| YE3-132S-8 | 2.2 | 5.8 | 705 | 81.9 | 0.71 | 28.0 | 1.8 | 2.0 | 6.7 |
| YE3-132M-8 | 3 | 7.5 | 705 | 83.5 | 0.73 | 38.2 | 1.8 | 2.0 | 6.9 |
| YE3-160M1-8 | 4 | 9.8 | 720 | 84.8 | 0.73 | 50.9 | 1.9 | 2.0 | 6.9 |
| YE3-160M2-8 | 5.5 | 13.1 | 720 | 86.2 | 0.74 | 70.0 | 1.9 | 2.0 | 6.9 |
| YE3-160L-8 | 7.5 | 17.4 | 720 | 87.3 | 0.75 | 95.5 | 1.9 | 2.0 | 6.6 |
| YE3-180L-8 | 11 | 25.2 | 730 | 88.6 | 0.75 | 140 | 2.0 | 2.0 | 6.6 |
| YE3-200L-8 | 15 | 33.5 | 730 | 89.6 | 0.76 | 191 | 2.0 | 2.0 | 6.8 |
| YE3-225S-8 | 18.5 | 41 | 730 | 90.1 | 0.76 | 236 | 1.9 | 2.0 | 6.8 |
| YE3-225M-8 | 22 | 47.3 | 730 | 90.6 | 0.78 | 280 | 1.9 | 2.0 | 7.0 |
| YE3-250M-8 | 30 | 63.2 | 730 | 91.3 | 0.79 | 382 | 1.9 | 2.0 | 6.7 |
| YE3-280S-8 | 37 | 78 | 740 | 91.8 | 0.79 | 471 | 1.9 | 2.0 | 6.7 |
| YE3-280M-8 | 45 | 94 | 740 | 92.2 | 0.79 | 573 | 1.9 | 2.0 | 6.7 |
| YE3-315S-8 | 55 | 112 | 740 | 92.5 | 0.81 | 700 | 1.8 | 2.0 | 6.8 |
| YE3-315M-8 | 75 | 151 | 740 | 93.1 | 0.81 | 955 | 1.8 | 2.0 | 6.3 |
| YE3-315L1-8 | 90 | 179 | 740 | 93.4 | 0.82 | 1146 | 1.8 | 2.0 | 6.4 |
| YE3-315L2-8 | 110 | 218 | 740 | 93.7 | 0.82 | 1401 | 1.8 | 2.0 | 6.4 |
| YE3-355M1-8 | 132 | 260 | 740 | 94 | 0.82 | 1681 | 1.8 | 2.0 | 6.4 |
| YE3-355M2-8 | 160 | 314 | 740 | 94.3 | 0.82 | 2037 | 1.8 | 2.0 | 6.4 |
| YE3-355L1-8 | 185 | 359 | 740 | 94.3 | 0.83 | 2356 | 1.8 | 2.0 | 6.4 |
| YE3-355L2-8 | 200 | 387 | 740 | 94.6 | 0.83 | 2547 | 1.8 | 2.0 | 6.4 |
| Ye3-3551-8 | 220 | 426 | 740 | 94.6 | 0.83 | 2801 | 1.8 | 2.0 | 6.4 |
| Ye3-3552-8 | 250 | 484 | 740 | 94.6 | 0.83 | 3183 | 1.8 | 2.0 | 6.4 |
| Velocidad de 10 polos-sincronas 600 rpm-50Hz | |||||||||
| YE3-315S-10 | 45 | 99 | 594 | 92 | 0.75 | 716 | 1.5 | 2.0 | 6.2 |
| YE3-315M-10 | 55 | 121 | 594 | 92 | 0.75 | 875 | 1.5 | 2.0 | 6.2 |
| YE3-315L1-10 | 75 | 162 | 594 | 93.8 | 0.76 | 1194 | 1.5 | 2.0 | 5.8 |
| YE3-315L2-10 | 90 | 191 | 594 | 93 | 0.77 | 1433 | 1.5 | 2.0 | 5.9 |
| YE3-355M1-10 | 110 | 230 | 590 | 93.3 | 0.78 | 1751 | 1.2 | 2.0 | 6.0 |
| YE3-355M2-10 | 132 | 274 | 590 | 93.8 | 0.78 | 2101 | 1.2 | 2.0 | 6.1 |
| YE3-355L-10 | 160 | 332 | 590 | 93.8 | 0.78 | 2547 | 1.2 | 2.0 | 6.1 |
Requisitos de mantenimiento para un motor eléctrico asincrónico trifásico
Los motores asincrónicos trifásicos de bajo voltaje, ampliamente utilizados para ventiladores, bombas, compresores y maquinaria de construcción, requieren un mantenimiento regular para garantizar un rendimiento, confiabilidad y longevidad óptimos. Estos son los requisitos clave de mantenimiento:
1. Inspección regular
Inspección visual: verifique periódicamente los signos visibles de desgaste, daños o sobrecalentamiento. Busque conexiones sueltas, fugas de aceite y daños físicos en la carcasa del motor.
Análisis de vibración: monitoree y analice los niveles de vibración para detectar desequilibrios, desalineación o problemas de apoyo temprano.
2. Lubricación
Lubricación de cojinetes: lubrique regularmente los rodamientos de acuerdo con las recomendaciones del fabricante. Use el tipo apropiado y la cantidad de grasa para evitar el desgaste excesivo y el sobrecalentamiento.
Programa de lubricación: Establezca un cronograma de lubricación consistente basado en el entorno operativo del motor y la frecuencia de uso.
3. Verificaciones eléctricas
Resistencia a aislamiento: mida periódicamente la resistencia de aislamiento de los devanados utilizando un megohmímetro para garantizar que permanezca dentro de los límites aceptables. La baja resistencia al aislamiento puede indicar el deterioro del devanado potencial o la entrada de humedad.
Conexiones y terminales: Inspeccione y apriete todas las conexiones y terminales eléctricos para evitar conexiones sueltas que puedan causar sobrecalentamiento y fallas eléctricas.
